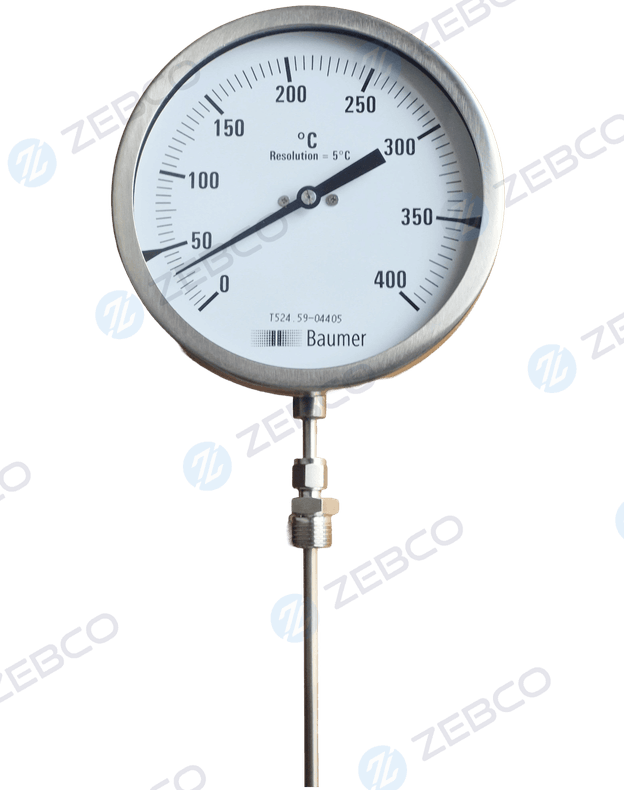

Baumer CA Model — Gas Filled Industrial Thermometer, Filled System

An inert gas-filled expansion thermometer built to EN 13190, offering everything the CB bimetal model does, plus one key advantage: a capillary connection that lets you mount the dial up to 15 metres away from the sensing point. All-stainless construction, optional silicon oil filling, and optional CE/ATEX electrical contacts for alarm or interlock duty.

EN 13190 Class 1SS Case & StemCapillary to 15mIP 65CE & ATEX ContactsPan India Delivery
WIKA A-10 Compact Pressure Transmitter
Banner Background

Product Overview

What Is the Baumer CA Gas Filled Temperature Gauge?

The Baumer CA Model is a stainless steel industrial thermometer built to EN 13190, using an inert gas-filled expansion system rather than a bimetal strip to sense temperature. A sealed sensing bulb, capillary tube and Bourdon tube — all charged with inert gas — form a closed pressure system: as the bulb's temperature changes, the gas pressure inside changes proportionally, and that pressure change is what drives the pointer.

The practical benefit of this design is remote indication. Because the sensing bulb and the display dial are connected only by a flexible capillary — available up to 15 metres — the CA Model can be installed with its sensing point deep inside a furnace, on an inaccessible vessel, or high on a structure, while the dial itself sits at eye level where an operator can actually read it. A bimetal thermometer like the Baumer CB Model cannot do this, since its dial is mechanically fixed to the sensing stem.

Like its bimetal counterpart, the CA Model requires no external power, wiring, or electronics — it is a fully mechanical instrument, which means no calibration drift from ageing electronic components and no risk of losing the reading during a power interruption. This makes it a dependable choice anywhere local or remote-but-mechanical temperature indication is preferred over an electronic transmitter loop.

Not sure whether you need a rigid-stem or capillary CA Model configuration? Send us your installation sketch.

Talk to a Technical Expert

Gas Filled vs. Bimetal — Quick Distinction

Why Choose Gas-Filled Over Bimetal?

Both the CA and CB models meet EN 13190 Class 1 accuracy and share an all-stainless-steel build — the deciding factor between them is almost always whether you need the dial located away from the sensing point.

FactorCA — Gas FilledCB — Bimetal
Sensing elementGas-filled bulb, capillary & Bourdon tubeCoiled bimetal strip in the stem
Dial locationLocal or remote (up to 15m via capillary)Fixed at the stem/sensing point
Best forInaccessible, high, or hazardous-to-approach sensing pointsDirectly accessible pipe/vessel connections
Relative complexitySlightly more complex sealed systemSimpler mechanical construction
Electrical contact optionAvailable (NS100/150mm)Not covered on CB Model

Key Features

What Makes the CA Model a Dependable Remote-Indication Instrument

💨
Inert Gas Filled Expansion System

Sealed gas system drives the pointer with no direct mechanical link needed between bulb and dial.

🔩
Stainless Steel Case

AISI 304 SS bayonet-type case for corrosion resistance and easy field servicing.

🧪
Stainless Steel Stem

AISI 316 SS stem and connection, TIG Argon Arc welded for a rugged, corrosion-resistant joint.

📋
EN 13190 Standard

Manufactured and scale-graduated to the European filled-system thermometer standard.

🎯
Class 1 Accuracy

Meets EN 13190 Class 1 — the tightest tolerance band defined for this instrument type.

🧴
Silicon Oil Filled (Optional)

Option QA dampens dial vibration on installations near pumps or rotating machinery.

🛡
Optional Thermowell

Allows bulb removal for calibration or replacement without a process shutdown.

Bottom Entry

Type 2/3 mounting for vertical or lower-back pipe and vessel connections.

Back Entry

Type 5 mounting with front flange for panel-style installation.

🔄
Every Angle Entry

Type 8 mounting rotates the dial independent of stem orientation.

📏
Remote Reading with Capillary

Type A2 configuration with capillary lengths up to 15 metres for distant dial placement.

🌡
Suitable for High & Low Temperatures

Standard ranges span -100°C to +650°C across the available nominal range table.

🧫
Corrosion Resistant Construction

All-SS wetted parts suit chemical, food, pharma, pulp, paper and refinery environments.

🔋
No External Power Required

Fully mechanical gas-expansion system needs no wiring or power supply.

Long Service Life

Sealed IP65 construction protects the movement from dust and moisture over years of use.

💧
IP65 Protection

Dust-tight and splash-resistant as standard; IP55 on the electrical contact version.

Optional Electrical Contacts

CE & ATEX approved contacts for NS100/150mm, in single or double NO/NC configurations.

🌀
Suitable for Vibrating Applications

Silicon-oil-filled version recommended near pumps, compressors and rotating equipment.

Technical Data

CA Model — Full Technical Data

Specifications as per Baumer datasheet 31-08-12. Zebco Engineering can configure any combination below for your application.

ParameterSpecification
Measuring principleInert gas-filled expansion system
Dial size (NS)100, 125, 150, 200, 250 mm
StandardEN 13190
AccuracyClass 1 as per EN 13190
Ambient temperature-25°C to +65°C
Operating pressure15 kg/cm² (without thermowell)
Overrange limit120% of full scale
Stem diameter8 mm (standard) — 6, 6.35, 9.5, 10, 12 mm optional
Stem lengthBelow-thread max. 600 mm
Capillary lengthUp to 15 metres (type A2, capillary version)
Case materialAISI 304 SS (bayonet type)
Stem materialAISI 316 SS
Window materialSheet glass (standard) · Plexi glass (silicon-oil-filled) · Polycarbonate dome (electrical contacts)
Protection ratingIP 65 (IP 55 with electrical contacts)
Process connection½" BSP (M), Adjustable (standard)
Thread typeAdjustable (ZI, standard), Fixed (ZJ), Revolving/Swivel (KJ)
Mounting typeWall/surface/projection, direct bottom entry, direct lower back entry, lower back entry with front flange, every angle back entry, lower back entry with mounting bracket
JointsTIG Argon Arc welding
DialAluminium, black graduation on white background
PointerAluminium, black, micrometer zero adjustable
Gasket & filling plugNeoprene (standard) · Viton (silicon-oil-filled)
ApprovalsGOST-R (option); CE & ATEX for electrical contacts
Optional accessoriesThermowell, custom dial, SS tag plate, calibration certificate, material test certificate

Silicon-Oil-Filled Version

ParameterSpecification
AccuracyClass 1 as per EN 13190
Ambient temperatureMaximum 65°C
WindowPlexi glass
Dampening liquidSilicon oil (option QA)
Gasket & filling plugViton

Electrical Contacts Version

ParameterSpecification
AccuracyClass 1 as per EN 13190
Ambient temperatureMaximum 65°C
WindowPolycarbonate dome
Dampening liquidDielectric oil (optional)

Note: adding mechanical electrical contacts affects instrument accuracy — e.g. 1% becomes 1.5%, 1.6% becomes 2.4% (add 50% of base accuracy). For magnetically-assisted contacts, this addition cannot be applied within ±5% of the set point.

Nominal Ranges

Nominal Range, Measuring Range & Error Limits (per EN 13190)

Nominal Range (°C)Measuring Range (°C)Limit of Error (±°C)
-20 to +40-10 to +301
-20 to +60-10 to +501
-20 to +120-10 to +1102
-30 to +30-20 to +201
-30 to +50-20 to +401
-30 to +70-20 to +601
-40 to +40-30 to +301
-40 to +60-30 to +501
-100 to +60-80 to +402
0 to 6010 to 501
0 to 8010 to 701
0 to 10010 to 901
0 to 12010 to 1102
0 to 16020 to 1402
0 to 20020 to 1802
0 to 25030 to 2202.5
0 to 30030 to 2705
0 to 40050 to 3505
0 to 50050 to 4505
0 to 600100 to 50010

Additional positive ranges up to 0/650°C and compound ranges as low as -80/60°C are available — see the full range table. Compound ranges are not recommended with the electrical contact option. °F and dual °C/°F scales available on request.

Available Variants

Direct Mount, Remote Mount & Mounting Options

Rigid Stem vs. Capillary Version

Type A1
Direct Mount — Rigid Stem

Dial mounts directly at the process connection, identical in layout to the CB bimetal thermometer. Choose this when the sensing point is easily viewable and accessible.

Type A2
Remote Mount — Capillary Version

Sensing bulb installs at the process point; the dial connects via a flexible capillary (up to 15 m) routed to a convenient viewing or panel location.

Capillary Material
PE (304 SS) / PG (316 SS)

Capillary tubing material selection, with optional armoured covering in 304 SS, 316 SS, or PVC (ambient max. 60°C) for mechanical protection against abrasion or crushing.

Mounting Types

TypeDescriptionBest Suited For
Type 1Wall / Surface / Projection Mounting — Bottom EntryCapillary version, dial wall-mounted independent of the sensing point
Type 2Direct Bottom EntryVertical pipe or top-entry tank connection, rigid stem
Type 3Direct Lower Back EntryHorizontal pipe run, dial viewed face-on
Type 5Lower Back Entry with Front FlangePanel-mounted capillary installations
Type 8Every Angle Back EntryDial angle needs to be independent of stem / capillary routing
Type 9Lower Back Entry with Mounting BracketRemote panel mounting with capillary loop and bracket support

Types 2, 3, and 8 are available in both direct mount (Type A1) and capillary (Type A2) versions. Types 1, 5, and 9 are intended for capillary (Type A2) installations where the dial is mounted remotely from the sensing point.

Process Connection & Stem Diameter

CodeConnectionMax Stem Diameter
3BM / 3NM / 3TM3/8" BSP(M) / NPT(M) / BSPT(M)Suitable for stem diameter 6–10 mm
4BM / 4NM / 4TM1/2" BSP(M) (standard) / NPT(M) / BSPT(M)Suitable for stem diameter 6–10 mm
5BM3/4" BSP(M)Suitable for stem diameter 6–10 mm
4MMM20 x 1.5 (M)Suitable for stem diameter 6–10 mm

NPT and BSPT variants are not recommended for revolving/swivel connections. Metric, PT, PF, flared, UNF, G or R connections available on request.

Working Principle

How the CA Model's Gas Expansion System Works

Five steps take you from process temperature to pointer reading — understanding each helps when explaining installation or troubleshooting requirements to site teams.

1
Gas Expansion Principle

The sensing bulb, capillary and Bourdon tube form one sealed system, pre-charged with an inert gas at the factory.

2
Temperature Sensing

The bulb, immersed in the process media, reaches process temperature and the gas inside expands or contracts accordingly.

3
Pressure Transmission

The resulting gas pressure change transmits instantly through the capillary tube to the Bourdon tube in the dial housing.

4
Bourdon Tube Movement

The Bourdon tube uncoils or curls proportionally to the internal gas pressure, converting pressure into mechanical rotation.

5
Pointer Indication

A geared movement converts the Bourdon tube's rotation into pointer travel across the graduated dial scale.

Industrial advantage: because the whole system is a sealed, factory-charged unit, there is nothing to recalibrate electronically — the main installation consideration is simply protecting the capillary from kinking, crushing, or excessive tight-radius bends during routing.

Applications

Where the CA Model Is Used

🔥
Boilers

Furnace and flue-gas temperature indication where the sensing point sits deep inside hot, inaccessible zones.

🌡
Heat Exchangers

Inlet/outlet temperature monitoring with the dial mounted for easy panel viewing.

💨
Steam Pipelines

Header temperature indication, capillary routed to accessible viewing height.

Chemical Reactors

Vessel temperature with remote dial placement away from hazardous or hot zones.

🛢
Storage Tanks

Bulk liquid temperature monitoring on tall or elevated tanks with ground-level dial reading.

🏭
Distillation Columns

Column temperature indication where the sensing point is at height and the dial is panel-mounted below.

🔥
Furnaces

High-temperature zone monitoring with the dial kept away from radiant heat exposure.

🌀
Compressors

Discharge temperature indication with silicon-oil-filled version for vibration resistance.

HVAC Systems

Chilled/hot water loop temperature indication with flexible dial placement.

🍽
Food Processing

Corrosion-resistant construction suited to wash-down and hygienic process areas.

💧
Water Treatment

Process and effluent temperature monitoring across treatment stages.

💊
Pharmaceutical Equipment

Clean, all-SS construction for process and utility temperature indication.

Industries Served

Industries That Rely on the Baumer CA Model

Oil & Gas

Remote dial placement for pipeline and separator temperature indication in hazardous zones.

Chemical

Corrosive process stream monitoring with dial mounted away from the process point.

Petrochemical

High-temperature column and reactor indication with capillary remote reading.

Power Plants

Furnace and boiler temperature indication where direct-mount access is impractical.

Steel

Furnace zone temperature monitoring kept away from extreme radiant heat.

Cement

Kiln-adjacent temperature indication with dial mounted at a safe viewing distance.

Mining

Remote indication for equipment installed in inaccessible or hazardous locations.

Pharmaceutical

Clean, corrosion-resistant indication for process and utility temperature monitoring.

Food & Beverage

Hygienic-compatible construction for bottling, brewing and processing lines.

Sugar

Boiling house temperature indication with remote dial for operator convenience.

Paper

Digester temperature monitoring resistant to pulp and bleaching chemicals.

Textile

Dye bath and steam line temperature indication in wet-processing areas.

Marine

Engine room temperature indication resistant to vibration and salt-air corrosion.

HVAC

Remote dial placement for chilled/hot water loop indication in building systems.

OEM Machinery

Capillary version for skid packages where the sensing point is buried within the machine frame.

Water Treatment

Process temperature monitoring across treatment stages with flexible panel mounting.

Renewable Energy

Biogas and solar-thermal loop temperature indication with remote-mounted dials.

Advantages

Why the CA Model Is Specified for Remote Indication

📏
Accurate Remote Temperature Measurement

Capillary transmission maintains Class 1 accuracy at the dial regardless of distance from the bulb.

🔭
Suitable for Long Distance Indication

Capillary lengths to 15 metres bring the dial to wherever the operator actually stands.

🌀
Excellent Vibration Resistance

The dial can be isolated from a vibrating sensing point entirely via the capillary run.

Long Mechanical Life

Sealed gas system with no electronic components to degrade over time.

High Reliability

Factory-charged, sealed measuring chain with a proven mechanical design.

🔋
No Power Supply Required

Fully mechanical operation independent of plant electrical infrastructure.

🔧
Easy Installation

Threaded process connection and straightforward capillary routing.

🛠
Low Maintenance

No batteries or electronics; periodic visual and zero-point checks are typically sufficient.

🏗
Rugged Industrial Design

All-SS, TIG-welded construction built for continuous plant-floor duty.

Comparison Tables

How the CA Model Compares

Baumer CA vs. Baumer CB

FactorCA — Gas FilledCB — Bimetal
Sensing methodGas-filled bulb, capillary, Bourdon tubeCoiled bimetal strip
Remote dial capabilityYes, up to 15 m capillaryNo — dial fixed at stem
Dial sizes available100–250 mm50–150 mm
Electrical contact optionAvailable (NS 100 / 150 mm)Not specified on datasheet
Typical use caseRemote / inaccessible sensing pointsDirectly accessible pipe / vessel connections

Gas Filled vs. Digital Temperature Indicator

FactorCA — Gas FilledDigital Indicator
Power requirementNoneBattery or external power required
Remote reading methodMechanical capillary transmissionElectronic cable or wireless signal
Data logging / alarm outputOnly via optional electrical contactsTypically standard on digital models
Best suited forSimple, powerless remote indicationApplications needing data logging or network integration

Remote Reading vs. Direct Reading

FactorRemote (Capillary, Type A2)Direct (Rigid Stem, Type A1)
Installation complexityRequires capillary routing and protectionSimple threaded installation
Viewing convenienceDial placed wherever neededDial fixed at the process connection
Best suited forHigh, hazardous, or inaccessible sensing pointsEasily accessible pipe or vessel taps

Electric Contacts

CE & ATEX Approved Electrical Contact Configurations

Available for NS 100mm and 150mm dial sizes only, with ingress protection up to IP 55 and a polycarbonate dome window. Compound ranges are not recommended with this option.

A) Single Insulated Magnetic Snap-Action Type (230V AC, 1A / 48V DC, 0.5A)

CodeConfiguration
RJSingle, normally closed (1 NC)
RLSingle, normally open (1 NO)
RKDouble, normally closed + normally open (1 NC + 1 NO)
RMDouble, normally open + normally closed (1 NO + 1 NC)
RNDouble, normally closed (both NC)
RODouble, normally open (both NO)
RUBooster with relay for current up to 5 Amp

B) Inductive Type (220V AC, 0.4 Amp)

CodeConfiguration
YWSingle, normally open (1 NO)
YVSingle, normally closed (1 NC)
YXDouble, normally closed + normally open (1 NC + 1 NO)
ZADouble, normally open + normally closed (1 NO + 1 NC)
YYDouble, normally open (both NO)
YZDouble, normally closed (both NC)

For double insulated electrical contacts, consult the factory for price and delivery. Dampening liquid (dielectric oil) is optional on the electrical contact version.

Selection Guide

How to Configure Your CA Model Order

1. Dial Size

Match dial size to viewing distance and required electrical contact compatibility.

  • Standard process indication: 100–150 mm
  • Distant panel viewing: 200–250 mm
  • Electrical contacts only available on 100mm and 150mm dials
2. Temperature Range

Select a nominal range where expected operating temperature sits within the middle third of the scale.

  • Utility/ambient lines: 0–100°C or 0–120°C
  • Process heat: 0–300°C to 0–650°C
  • Sub-zero applications: -100 to +60°C compound range
3. Stem Length

Stem must achieve full immersion depth into the process stream, not just reach the pipe wall.

  • Minimum immersion lengths vary by stem diameter — refer to the minimum stem length table (110–130mm depending on diameter)
  • Confirm thermowell insertion length if used
4. Capillary Length

Specify only the length actually needed for the routing path — excess capillary adds cost and installation complexity.

  • Short-distance remote mount: 1.5–3 metres
  • Elevated or distant panel mount: up to 15 metres
  • Specify armoured covering if the capillary route crosses walkways or exposed areas
5. Mounting Type

Choose based on whether the installation is direct-mount or capillary remote-mount.

  • Direct, vertical pipe: Type 2
  • Direct, horizontal pipe: Type 3
  • Remote panel/wall mount: Type 1, 5 or 9
6. Thermowell & Process Connection

Confirm process tap size and whether a thermowell is required for isolation.

  • Standard tap: ½" BSP(M) adjustable
  • High-pressure or serviceable lines: specify a thermowell
  • Revolving connections: use process connection type KJ

Installation & Maintenance

Getting Reliable Readings From Your CA Model

📐
Proper Mounting

Select the mounting type that lets the dial face the normal operator viewing position, whether direct or capillary-remote.

🧪
Thermowell Installation

Fit and torque the thermowell before commissioning; confirm the bulb seats fully for accurate heat transfer.

🌀
Capillary Routing

Route the capillary with generous bend radii, secure it along its path, and avoid routing through high-traffic or pinch-point areas.

Avoiding Mechanical Damage

Never kink, crush, or forcibly straighten the capillary — armoured covering is recommended in exposed walkway or machinery areas.

Calibration Checks

Verify zero-point accuracy against a reference thermometer periodically, particularly after any mechanical disturbance to the capillary run.

🧹
Maintenance Best Practices

Inspect the window and dial for damage, check thermowell tightness at turnarounds, and confirm capillary routing remains undamaged during plant maintenance work.

Why Buy From Zebco Engineering LLP

Your Authorized Source for Genuine Baumer CA Model Thermometers

01
Genuine Baumer Products

supplier supply with full manufacturer traceability.

02
Technical Selection Support

Configuration review against your installation sketch before quotation.

03
Competitive Pricing

Transparent quotations with volume pricing for bulk and repeat orders.

04
Bulk Project Supply

Coordinated multi-item, multi-delivery supply for plant turnarounds and expansions.

05
Fast Delivery

Stocked common configurations dispatch quickly for urgent maintenance needs.

06
Export Documentation

Full export documentation, commercial invoicing and compliance packs for international orders.

07
Pan India Supply

Reliable dispatch to every major industrial cluster across India.

08
OEM Support

Recurring supply agreements and custom dial/branding for machine builders.

09
After-Sales Assistance

Calibration guidance and technical troubleshooting support after delivery.

Frequently Asked Questions

CA Model — Technical FAQ

An inert gas-filled expansion thermometer built to EN 13190, using a sealed sensing bulb, capillary and Bourdon tube system, available with a rigid stem or remote capillary reading up to 15 metres.

The CB Model is bimetal with the dial fixed at the sensing point; the CA Model is gas-filled and can place the dial up to 15 metres away via capillary.

Temperature at the sensing bulb changes the pressure of the sealed inert gas system, which is transmitted through the capillary to a Bourdon tube that drives the pointer.

100mm, 125mm, 150mm, 200mm and 250mm.

Class 1 per EN 13190.

Up to 15 metres, specified in the order code to the nearest 0.5 metre.

AISI 304 SS (code PE) or AISI 316 SS (code PG), with optional armoured covering in 304 SS, 316 SS, or PVC (ambient max. 60°C).

No — it is a fully mechanical, gas-expansion-driven instrument.

AISI 304 SS bayonet-type case and bezel; AISI 316 SS stem and connection, TIG Argon Arc welded.

½" BSP(M), adjustable, as standard; other BSP, NPT, BSPT and metric threads available.

Wall/surface/projection mounting (Type 1), direct bottom entry (Type 2), direct lower back entry (Type 3), lower back entry with front flange (Type 5), every angle back entry (Type 8), and lower back entry with mounting bracket (Type 9).

15 kg/cm², the maximum operating pressure when the sensing bulb is installed directly into the process without a thermowell.

It allows the sensing bulb to be removed for calibration or replacement without interrupting the process, and protects it from direct pressure and flow exposure.

IP 65 standard; IP 55 on the electrical contact version.

Yes, for NS 100mm and 150mm dials only, CE and ATEX approved, in single insulated magnetic snap-action or inductive type configurations.

Compound ranges are not recommended for the electrical contact option per the manufacturer's guidance.

Base accuracy is reduced — for example 1% becomes 1.5%, 1.6% becomes 2.4% (add 50% of base accuracy); magnetically-assisted contacts cannot have this addition applied within ±5% of the set point.

When the installation is exposed to mechanical vibration, such as near pumps or compressors — option QA dampens dial vibration up to 65°C ambient.

An optional dampening liquid available specifically on the electrical contact version of the CA Model.

Sheet glass on the standard version, plexi glass on the silicon-oil-filled version, and a polycarbonate dome on the electrical contact version.

Yes — the pointer includes micrometer zero adjustment as standard.

Yes, option PS provides an AISI 316 SS case and bezel, available for NS 100mm to 150mm dials.

Yes, option PW provides a five-point calibration certificate for the specified measuring range.

Yes, option GH provides material test certificates for wetted parts with chemical composition testing.

Yes, option PY provides glycerin dampening fill for ambient temperatures up to 65°C.

Option SJ adds a maximum reading pointer with plexi glass, available on the dry version for NS 100mm to 150mm dials, useful for recording peak temperature exposure.

Chemical, food, pharmaceutical, pulp, paper, refinery, cement, and other process industries handling corrosive media where remote temperature indication is beneficial.

CA . [Nominal Size] . [Mounting Type] . [Process Connection] . [Connection Type] . [Stem Diameter] . [Stem Length] . [Range] . [Type A1/A2] . [Capillary Length] . [Capillary Material] . [Armour] . [Electrical Contact Code] . [Optional Extras].

Yes, using process connection type KJ; NPT and BSPT threads are not recommended for revolving/swivel connections.

Yes. Zebco Engineering LLP is an authorized Baumer Supplier supplying pan India and internationally, with export documentation support. Contact +91 98982 26321 or sales@zebcoeng.com.

Lead time depends on dial size, capillary length and electrical contact options selected; share your specification with our team for a project-specific lead time.

Let’s Get Started

Our team is here to help with all your industrial needs. Reach out to us today, and let Zebco Engi neering provide the solutions you're looking for.

ContactTextImg
Banner Background

Need Expert Assistance?

Complete the Form and We'll Reach Out Soon!

Please verify you're not a robot
Banner Background

Contact Form
