Construction & Design Excellence of Baumer AL Model
The Baumer AL model is built with a focus on mechanical stability and measurement integrity.
Robust Mechanical Design
- Bourdon Tube System: Manufactured from high-grade stainless steel, the Bourdon tube ensures elastic deformation without fatigue, even under repeated pressure cycles.
- Solid Stainless Steel Case: Protects internal components from corrosion, dust, and moisture, making it suitable for indoor and outdoor installations.
- Sealed Construction: Prevents ingress of dust and water, maintaining long-term reliability.
This design philosophy ensures consistent accuracy throughout the gauge’s lifecycle, not just during initial installation.
Working Principle - How the Baumer AL Model Delivers Accuracy
The Baumer AL pressure gauge operates on the Bourdon tube principle, a globally trusted and proven technology.
- When pressure enters the Bourdon tube, it tends to straighten.
- This movement is mechanically transmitted to the pointer through a precision gear mechanism.
- The result is a direct, stable, and repeatable pressure indication without the need for external power.
Because of this purely mechanical operation, the AL model is:
- Immune to electrical interference
- Reliable in remote or hazardous locations
- Ideal for continuous monitoring applications
Importance of Accuracy in Industrial Pressure Measurement
Inaccurate pressure measurement can silently damage operations. The Baumer AL model addresses this risk head-on.
Why Accuracy Matters:
- Process Stability: Maintains uniform production conditions
- Safety Compliance: Prevents overpressure incidents
- Reduced Downtime: Early detection of abnormal pressure behaviour
- Cost Control: Avoids equipment damage and rework
With accuracy up to ±1.0% of full scale, the Baumer AL model ensures decisions are made on trusted data, not assumptions.
Environmental & Operating Advantages
The Baumer AL model is designed to perform where ordinary gauges struggle.
- Vibration Resistance: Suitable for pumps, compressors, and rotating equipment
- Temperature Stability: Maintains accuracy despite ambient temperature variations
- Weather Resistance: Ideal for outdoor installations and plant utility areas
This makes it a dependable solution for round-the-clock industrial operations.
Typical Industrial Applications in Detail
Chemical Processing
- Reactor pressure monitoring
- Dosing systems
- Pipeline pressure indication
Oil & Gas
- Skid-mounted systems
- Utility air and gas lines
- Pump discharge pressure
Pharmaceuticals
- Process validation support
- Clean and controlled pressure environments
Food & Beverage
- Process pressure monitoring
- Packaging and filling lines
Power & Utilities
- Boiler auxiliaries
- Cooling water and steam systems
Compliance with International Standards
The Baumer AL Model Pressure Gauge complies with internationally accepted norms, ensuring global project compatibility:
- EN 837-1: Mechanical pressure gauge standard
- PED 2014/68/EU: Pressure equipment safety compliance
- CE Certification: European conformity
- ISO Manufacturing Standards: Ensuring quality consistency
- ATEX Certification (Optional / As Applicable): Suitable for use in potentially explosive atmospheres as per ATEX directives, making the AL model ideal for chemical plants, oil & gas facilities, and hazardous area installations.
These certifications make the Baumer AL model well-suited for multinational projects, hazardous-area applications, and export-oriented industrial plants.
Installation Flexibility & Customization
Baumer understands that no two installations are identical. Available options include:
- Bottom entry or back entry connections
- Panel mounting or surface mounting
- Multiple pressure ranges and dial sizes
- Vacuum and compound scale configurations
This flexibility allows engineers to optimize installation without compromising readability or safety.
Maintenance & Long-Term Reliability
One of the strongest advantages of the Baumer AL model is its low maintenance requirement.
- No power supply required
- Minimal calibration drift
- Rugged mechanical parts
- Long service intervals
This results in a lower total cost of ownership compared to low-quality alternatives.
Pressure Gauge Comparison

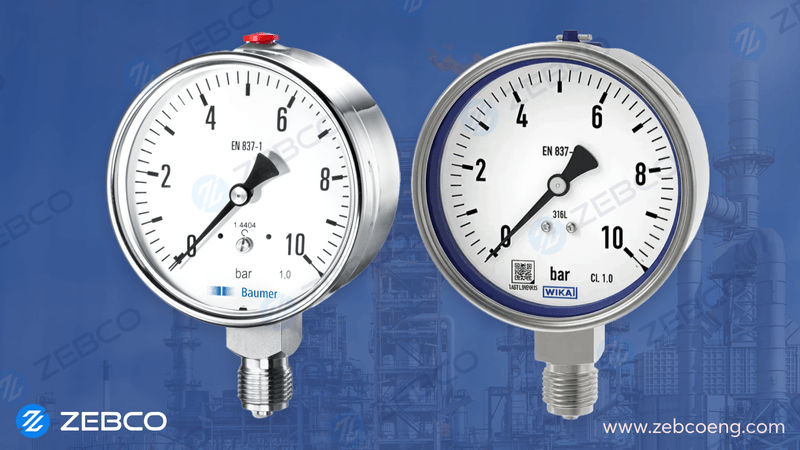

Baumer AL Model vs WIKA 232.50 vs General Instruments (GIC)
To help you evaluate and choose the most suitable pressure gauge for your industrial process, here’s a head-to-head comparison of the Baumer AL Model, WIKA 232.50 / 233.50, and General Instruments (GIC) pressure gauges. These are among the most trusted mechanical gauges used across industries.
| Feature / Aspect | Baumer AL Model | WIKA 232.50 / 233.50 | General Instruments (GIC) |
|---|---|---|---|
| Gauge Type | Mechanical Bourdon tube | Mechanical Bourdon tube | Mechanical Bourdon tube |
| Construction Material | SS 304 / SS 316 (stainless steel) | SS 304 / SS 316L (stainless steel) | SS 304 / SS 316L (stainless steel) |
| Accuracy | ±1.0% of full scale (standard) | ±1.0% on larger dials | ±1.0% standard; ±0.5% optional |
| Dial Sizes | 100, 150 mm | 63, 100, 160 mm | 100, 150 mm |
| Pressure & Vacuum Range | Vacuum to high pressure (configurable) | Vacuum / compound to ~1600 bar | Vacuum to very high ranges (up to 3000 kg/cm² or more) |
| Standards & Compliance | EN 837-1, CE, PED; optional ATEX | EN 837-1, ASME B40.100; optional ATEX & safety features | EN 837, CE, ATEX, and broader certification options |
| Protection / IP Rating | IP65 (standard) | IP65 / IP66 options | Up to IP68 on many models |
| Overpressure Protection | Standard overrange tolerance | Built-in blow-out safety device | Blow-out protection on select models |
| Environmental Suitability | Corrosive environments, general industrial | Dynamic environments, vibration, pulsation | Heavy-duty, harsh environments |
| Special Options | External zero adjust, panel / surface mount, liquids | Liquid fill, snubbers, limit switches, traceable calibration | Exotic wetted parts, heavy-duty variants |
| Typical Industries | Chemical, petrochemical, food & beverage, power utilities | Chemical, oil & gas, process plants, automation systems | Petrochemical, power, mining, heavy industry |
What This Means for You
✔ Exceptional corrosion resistance with stainless steel construction
✔ Ideal for general industrial, chemical, HVAC, and food & beverage applications
✔ Balanced performance with stable accuracy and IP65 protection
✔ Excellent choice for systems involving vibration, rapid pressure changes, or pulsation
✔ Liquid-filled options enhance performance in dynamic environments
✔ Safety features like blow-out protection and traceability add to process reliability
General Instruments (GIC)
✔ Strong capability for high pressure and extreme applications
✔ Broader certification availability (e.g., ATEX, IBR, GOST) for regulated projects
✔ Offers IP68 and exotic wetted materials for aggressive media
Why This Comparison Matters
Selecting the right pressure gauge is crucial to:
- Maintain process stability
- Protect equipment from overload or failure
- Ensure operator safety
- Achieve compliance with industry regulations
- Minimize maintenance and lifecycle costs
The Baumer AL Model stands out for its balanced performance, reliability, and corrosion resistance, making it one of the most cost-effective and dependable choices for a wide range of industrial uses.
Why Zebco Engineering LLP is the Right Partner
Choosing the right pressure gauge is only half the job. Choosing the right supplier completes the equation.
What we Offers:
- Authorized supply of genuine Baumer instruments
- Ready Stock Materials / Solve your Delivery Headache
- Application-based model selection
- Technical consultation and documentation support
- Fast response for projects and bulk requirements
- Reliable after-sales assistance
With Zebco, you don’t just buy a gauge. You gain a technical partner.
Final Thoughts
The Baumer AL Model Pressure Gauge is not just an instrument. It is a critical process assurance tool. With its robust design, high accuracy, and global compliance, it stands as a dependable solution for industries that demand precision without compromise.
Backed by Zebco Engineering LLP, it becomes a complete, reliable, and future-ready pressure measurement solution.
FAQs – Frequently Asked Questions
Yes. The Baumer AL model is designed for continuous operation and maintains stable accuracy even under constant pressure load.
Yes. Calibration and test certificates traceable to national or international standards can be provided as per customer or regulatory requirements.
Yes. The Baumer AL model is available in vacuum and compound ranges, suitable for applications involving negative pressure.
Absolutely. Its robust construction, standard compliance, and customization options make it ideal for OEM and system integrator applications.
The standard Baumer AL model uses SS 316 / SS 316L wetted parts, ensuring compatibility with most industrial and mildly corrosive media.
Yes. With its all-stainless-steel construction, the gauge performs reliably in chemical, petrochemical, and process industries with corrosive conditions.
Yes. The gauge offers IP65 / IP66 protection, making it suitable for outdoor use and environments exposed to dust and moisture.
ATEX-compliant versions are available on request, making the Baumer AL model suitable for potentially explosive atmospheres in oil & gas and chemical plants.
The Baumer AL model is available in multiple dial sizes such as 63 mm, 100 mm, and 150 mm, with bottom entry, back entry, and panel mounting options.
Baumer AL offers a balanced combination of accuracy, corrosion resistance, and durability. While WIKA excels in high-vibration applications and GIC in heavy-duty customization, Baumer AL is ideal for general industrial and process applications.
No. The Baumer AL model is a purely mechanical instrument with low drift and minimal maintenance requirements.
Yes. Zebco Engineering LLP provides expert technical support to help select the correct Baumer AL gauge based on process conditions, industry standards, and application needs.
