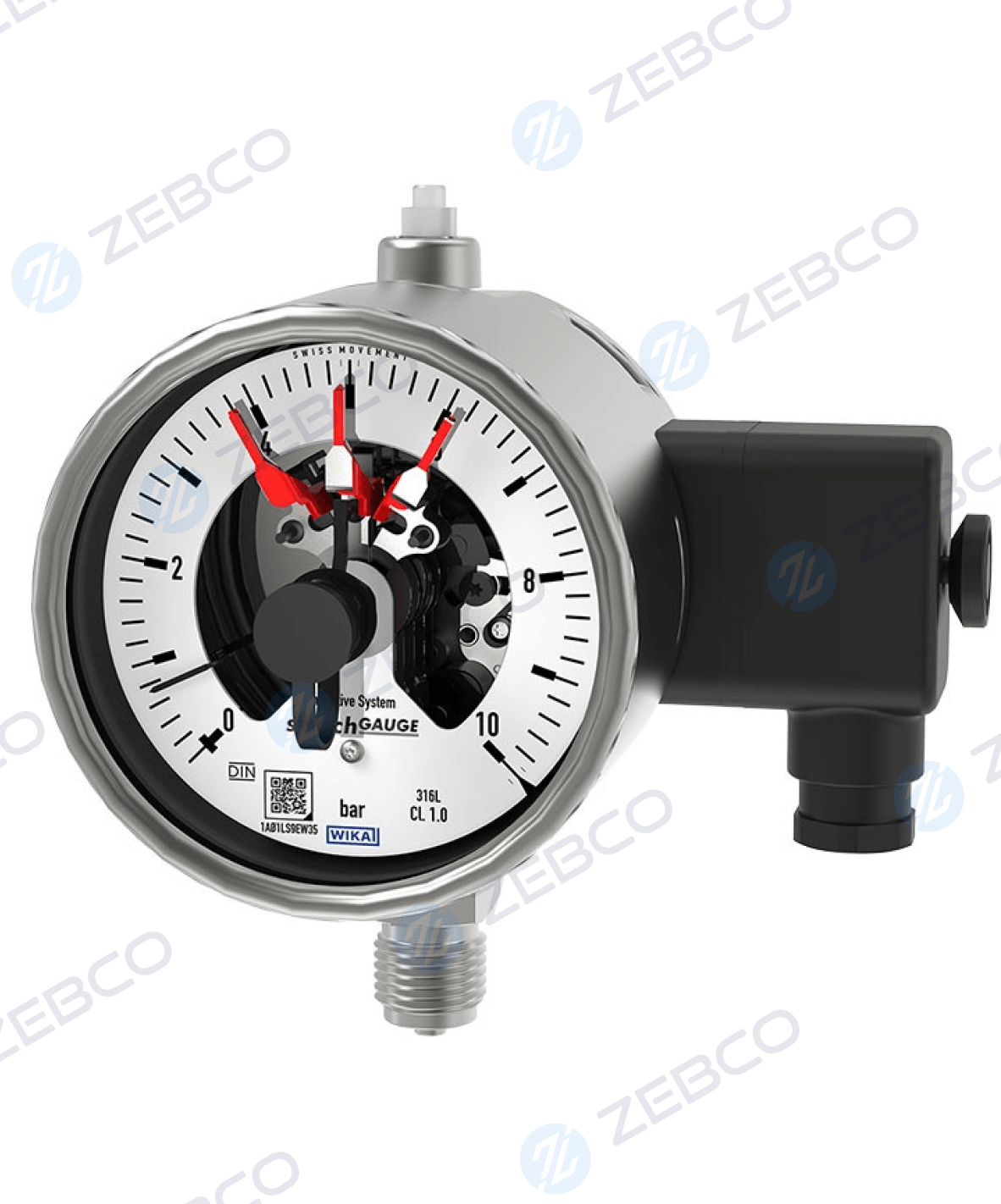

Wika Bourdon Tube Pressure GaugeWith Switch Contacts ( Models PGS23.100, PGS23.160 )

Special Features

Shop Datasheet

Excellent load cycle stability and shock resistance
Also available with case filling for high dynamic pressure loads or vibrations
Instruments with inductive contacts for use in hazardous areas
Instruments with contacts for PLC applications
Safety version with solid baffle wall (Solidfront) available

Application of Bourdon Tube Pressure GaugeWith Switch Contacts

Control and regulation of processes

Monitoring of plants and switching of circuits

For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction

Descriptions

At Zebco, we offer WIKA Bourdon Tube Pressure Gauges with Switch Contacts (Models: PGS23.100, PGS23.160), ideal for applications where local pressure indication and circuit switching are required.

These gauges feature adjustable switch contacts, which open or close an electric control circuit based on the pointer's position. The contacts can be set across the entire scale range (as per DIN 16085), typically mounted below the dial, though some may be located on top.

The instrument pointer moves freely, independent of the setting, while the set pointer can be adjusted using a removable key. Multiple switch contacts can be configured to a single set point, with actuation occurring when the pointer moves beyond or below the set point.

Manufactured to meet international standards, these gauges are designed for accurate pressure indication in pressure vessels.

Available with options including magnetic snap-action, reed switches, inductive, and electronic contacts, these gauges provide flexibility for various industrial environments, including hazardous areas and PLC triggering

Specifications

Standard	EN 837-1 ASME B40.100
Pressure gauges with electrical limit contact devices	DIN 16085
	For information on the “Selection, installation, handling and operation of pressure gauges, see technical information IN 00.05
Nominal size (NS)	Ø 100 mm [4] Ø 160 mm [6]
Further version	Oil- and grease-free For oxygen, oil- and grease-free Silicone-free Per NACE 1) MR0175 / ISO 15156, use in H₂S-containing environments in oil and gas production Per NACE 1) MR0103 / ISO 17945, metals resistant to sulphide stress cracking With pre-volume deflagration flame arrester 2) for mounting to zone 0 (EPL Ga); model 910.21, see data sheet AC 91.02
Window	Laminated safety glass Polycarbonate 3)
Connection location	Lower mount (radial) Lower back mount
Case	-
Design	Safety level “S1” per EN 837-1: with blow-out device Safety level “S3” per EN 837-1: with solid baffle wall and blow-out back
Material	Stainless steel 1.4301 (304) Stainless steel 1.4571 (316 Ti) 4)
Case filling	Without Silicone oil M50 5) Instruments with case filling with compensating valve to vent case.
Movement	Stainless steel Silicone oil M50 5)
