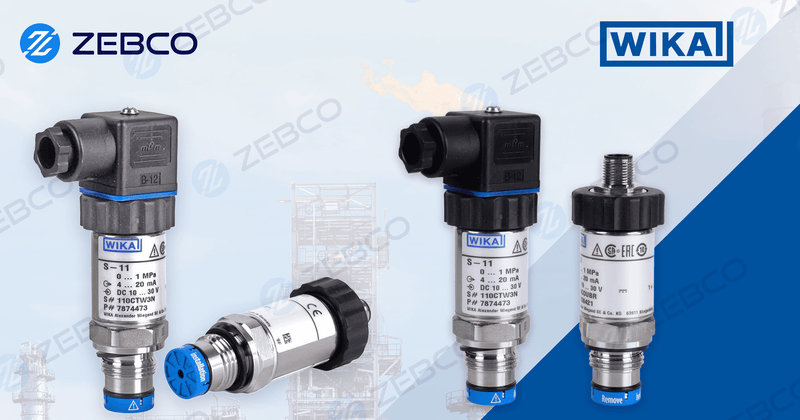

Construction & Design Excellence of WIKA Pressure Transmitters
WIKA pressure transmitters (often referred to as pressure sensors) are built with a primary focus on measurement integrity, ruggedness, and structural stability.
Robust Mechanical Design
- Advanced Sensor Elements: Utilizing state-of-the-art piezoresistive or thin-film metal sensor technologies, WIKA elements undergo precise elastic deformation without structural fatigue, even under continuous, high-frequency pressure cycles.
- Heavy-Duty Stainless Steel Housing: The hermetically sealed stainless steel body protects internal electronic components from harsh ambient conditions, chemical splash, dust, and humidity, making them highly suitable for both indoor control panels and rugged outdoor field installations.
- Sealed Integrity and Ingress Protection: Engineered with high IP ratings (up to IP67 or IP68), these transmitters prevent any ingress of moisture or particulates, ensuring long-term systemic reliability.
This sophisticated design methodology guarantees consistent accuracy and zero-point stability throughout the transmitter’s operational lifecycle, reducing the need for frequent recalibrations.
Working Principle - How WIKA Pressure Transmitters Deliver Accuracy
WIKA pressure transmitters operate on proven piezo-resistive or thin-film sensor principles to convert mechanical pressure forces into manageable electrical signals.
- When process pressure acts directly on the internal diaphragm sensor, it causes microscopic deflection.
- This mechanical deflection changes the electrical resistance within the sensor circuit bridge.
- The integrated electronics convert this resistance variation into a standardized analog or digital output signal (such as 4-20 mA, DC 0-10 V, or ratiometric signals).
- The result is a highly precise, stable, and continuous electrical indication that can be effortlessly read by PLCs, DCS networks, or digital indicators.
Because of this sophisticated electronic signal processing, WIKA transmitters are:
- Highly immune to electromagnetic and RF interference
- Capable of long-distance signal transmission without power loss
- Optimized for modern automated control and safety systems
Importance of Accuracy in Industrial Pressure Measurement
In manufacturing and process environments, fluctuating or inaccurate pressure readings can silently degrade system efficiency and ruin product quality. WIKA pressure transmitters address this operational vulnerability directly.
Why Precision Matters:
- Process Automation: Feeds instantaneous, highly precise data into automated control loops to maintain uniform operating thresholds.
- System Safety Assurance: Prevents catastrophic overpressure incidents by triggering immediate emergency shutdowns or alarms.
- Minimized Downtime: Early warning telemetry allows maintenance personnel to address abnormal pressure behavior before total component failure occurs.
- Resource Optimization: Reduces raw material wastage and rework by assuring constant pressure configurations.
Offering accuracy levels as high as ±0.5% or ±0.25% of full scale, WIKA transmitters ensure your control systems make decisions based on uncompromised, verifiable field data.
Environmental & Operating Advantages
WIKA pressure transmitters are rigorously engineered to thrive in dynamic operational environments where lesser sensors routinely fail.
- Vibration & Shock Resistance: Perfect for high-pulsation machinery like hydraulic power packs, process pumps, and heavy industrial compressors.
- Thermal Compensated Stability: Features specialized onboard thermal compensation to eliminate drift and preserve precision despite extreme or rapid ambient temperature variations.
- Aggressive Media Handling: Available with specialized corrosion-resistant wetted parts (such as Hastelloy or 316L Stainless Steel) to process aggressive chemicals without structural degradation.
This makes WIKA an indispensable solution for 24/7 continuous industrial processing and safety operations.
Typical Industrial Applications in Detail
Hydraulics & Pneumatics
- Machine tool automation
- Hydraulic power units (HPUs)
- Pneumatic monitoring and air distribution systems
Oil, Gas & Petrochemical
- Offshore drilling instrumentation
- Distribution pipeline monitoring
- Refinery storage tank level and head-pressure calculation
Water & Wastewater Management
- Pumping station lift control
- Leakage detection in distribution grids
- Filter bed monitoring and backwash optimization
HVAC & Refrigeration Systems
- Compressor oil pressure monitoring
- Chiller and heat pump optimization
- Fan status and duct pressure verification
Factory Automation & OEM Machinery
- Injection molding machines
- Customized packaging and bottling systems
- General mechanical assembly lines
Compliance with International Standards
Every WIKA Pressure Transmitter is manufactured in compliance with globally accepted norms, rendering them universally compatible with international projects:
- IECEx & ATEX Approvals: Certified variants engineered explicitly for safe operation within potentially explosive or hazardous atmospheres.
- CE Conformity & RoHS: Adherence to European safety, health, and environmental protection requirements.
- UL & CSA Listing: Ensuring complete compliance with North American installation and safety regulations.
- ISO 9001 Manufacturing: Standardized global production procedures ensuring consistent build quality across every single batch.
These stringent validations make WIKA transmitters highly preferred for multinational engineering installations, hazardous process areas, and export-driven heavy machinery.
Installation Flexibility & Customization
Recognizing that no two processing architectures are identical, WIKA provides an exhaustive array of configuration parameters:
- Diverse Process Connections: G 1/4, G 1/2, NPT threads, and flush diaphragm styles for highly viscous or crystallizing fluids.
- Multiple Electrical Connectors: Angular connectors (DIN 175301-803 A), circular M12 x 1 pins, or direct cable outlets.
- Variable Measurement Ranges: Scalable configurations stretching from vacuum up to extreme high pressures of over 1,000 bar.
This deep level of flexibility empowers instrumentation engineers to optimize their physical layouts without ever sacrificing readability, sensor safety, or spatial constraints.
Maintenance & Long-Term Reliability
One of the most notable economic benefits of implementing WIKA pressure transmitters is their virtually non-existent maintenance cycle.
- No moving mechanical parts to wear down or replace over time
- Negligible long-term calibration drift parameters
- Exceptionally high overpressure safety coefficients
- Extended service intervals even in highly dynamic system circuits
Ultimately, this equates to a significantly lower total cost of ownership (TCO) and less downtime compared to budget-grade alternatives.
Pressure Transmitter Comparison
WIKA A-10 vs WIKA S-20 vs WIKA S-11 vs WIKA O-10
To assist you in evaluating the optimal electronic sensor solution for your facility, here is a detailed, head-to-head architectural analysis of WIKA’s four most popular industrial transmitter lines.
| Feature / Aspect | WIKA A-10 | WIKA S-20 | WIKA S-11 | WIKA O-10 |
|---|---|---|---|---|
| Primary Target | General Industrial Applications | Heavy Duty & Critical Process | Viscous, Sticky & Particle-laden Media | OEM & High-Volume Machinery |
| Sensor Technology | Piezoresistive / Thin-film | Piezoresistive / Thin-film (Enhanced) | Piezoresistive with Flush Diaphragm | Thin-film / Compact Piezoresistive |
| Standard Accuracy | ±0.5% or ±1.0% of span | ±0.25% or ±0.5% of span | ±0.5% of span (±0.25% optional) | ±1.0% of span |
| Pressure Range | 0...0.1 to 0...600 bar | 0...0.4 to 0...1,600 bar | 0...0.1 to 0...600 bar | 0...6 to 0...600 bar |
| Output Signals | 4-20 mA, DC 0-10 V, DC 1-5 V | 4-20 mA, DC 0-10 V, DC 0-5 V, others | 4-20 mA, DC 0-10 V, DC 0-5 V, others | 4-20 mA, DC 0-10 V, ratiometric |
| Operating Temp. | -30 °C to +100 °C | -40 °C to +125 °C (Up to 150 °C optional) | -30 °C to +100 °C (Up to 150 °C with cooling element) | -30 °C to +100 °C |
| Overpressure Limit | 2x Full Scale standard | Up to 3x Full Scale optional | 2x Full Scale standard | 2x Full Scale standard |
| Special Options | Compact dimensions, highly economical | Custom wetted parts, extreme shock proof | Flush process connection, hygienic/FDA options | Massively scalable pricing, integrated plug |
What This Means for You
- Highly versatile, industry-standard pricing and footprint.
- Ideal for general machine building, pump monitoring, hydraulics, and light industrial utilities.
- Exceptional performance-to-price ratio with rapid local stock availability.

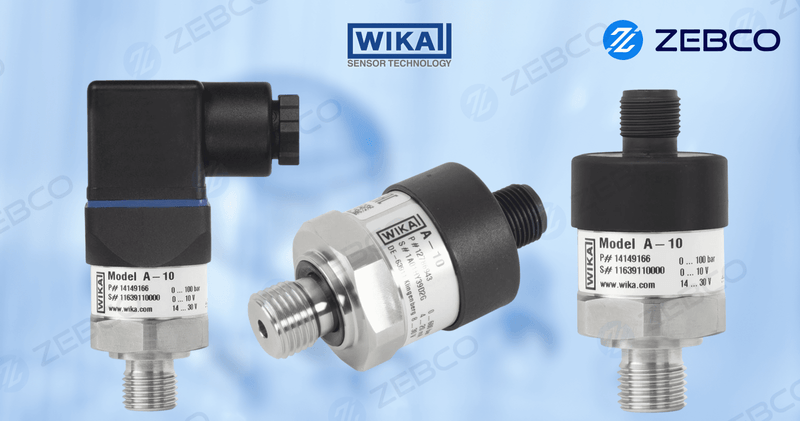

- Designed for General Industrial Applications: The WIKA A-10 pressure transmitter is engineered for reliable pressure measurement in hydraulic systems, pneumatic equipment, compressors, pumps, and industrial machinery. Its robust construction ensures dependable performance in a wide range of operating environments.
- High Measurement Accuracy: The A-10 delivers accurate and stable pressure readings, helping improve process efficiency, product quality, and equipment safety. Its precision makes it suitable for continuous monitoring and industrial automation systems.
- Compact and Space-Saving Design: With its compact housing, the WIKA A-10 is ideal for installations where mounting space is limited. Its lightweight design allows easy integration into OEM equipment and existing process systems.
- Durable Stainless Steel Construction: The wetted parts are manufactured from high-quality stainless steel, providing excellent resistance to corrosion, vibration, and harsh industrial conditions while ensuring a long operational life.
- Wide Pressure Measurement Range: The transmitter is available in multiple pressure ranges, allowing users to select the most suitable model for low-pressure, medium-pressure, or high-pressure industrial applications.
- Multiple Electrical Output Options: WIKA A-10 supports standard industrial output signals such as 4–20 mA, 0–10 V, and other voltage/current outputs, making integration with PLC, DCS, and SCADA systems straightforward.
- Excellent Long-Term Stability: Advanced sensing technology minimizes drift over time, ensuring consistent and reliable measurements with reduced maintenance and recalibration requirements.
- Suitable for Various Media: The transmitter can accurately measure the pressure of liquids, gases, and non-aggressive process media, making it versatile across numerous industrial sectors.
- Easy Installation and Maintenance: Standard process connections and electrical connectors simplify installation, while its rugged design reduces downtime and ongoing maintenance costs.
- Ideal Industrial Applications: The WIKA A-10 pressure transmitter is widely used in water treatment plants, HVAC systems, hydraulic power units, compressors, packaging machinery, process automation, and general industrial manufacturing.
- The absolute choice for systems with extreme temperatures, heavy hydraulic spikes, or demanding chemical media.
- Enhanced accuracy options make it perfect for calibration test benches and high-stakes process control loops.
- Broadest array of configurable electrical and process connection styles available.

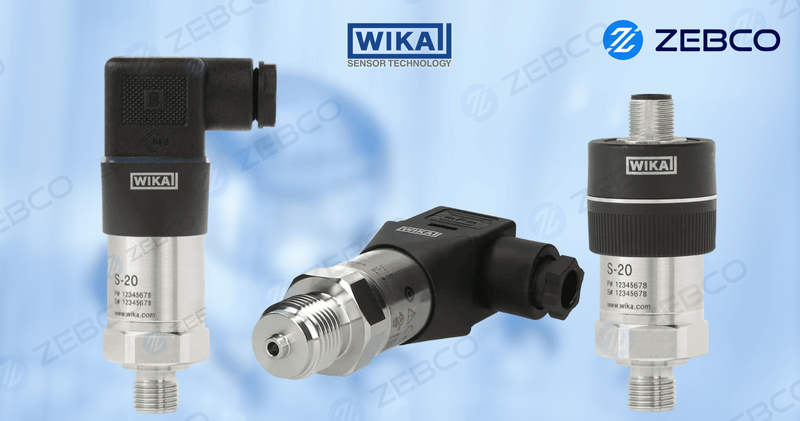

- Built for Demanding Industrial Applications: The WIKA S-20 pressure transmitter is designed for critical industrial processes that require exceptional accuracy, long-term stability, and reliable performance. It is widely used in industries such as oil & gas, chemical processing, power generation, water treatment, and industrial automation.
- High-Precision Pressure Measurement: Equipped with advanced sensor technology, the S-20 delivers highly accurate pressure measurements with excellent repeatability. Its precision makes it suitable for applications where consistent process monitoring is essential for maintaining safety and operational efficiency.
- Wide Pressure Range Availability: The WIKA S-20 is available in an extensive range of pressure ratings, from vacuum applications to high-pressure systems up to 1,600 bar, making it suitable for a variety of industrial processes.
- Robust Stainless Steel Construction: Manufactured using high-quality stainless steel for both the housing and wetted parts, the S-20 offers outstanding resistance to corrosion, mechanical stress, vibration, and harsh environmental conditions, ensuring long service life.
- Multiple Output Signal Options: The transmitter supports industry-standard output signals such as 4–20 mA, 0–10 V, and other electrical outputs, allowing seamless integration with PLC, DCS, SCADA, and industrial control systems.
- Excellent Long-Term Stability: Designed for continuous operation, the S-20 maintains stable measurement performance over extended periods with minimal signal drift, reducing maintenance requirements and improving process reliability.
- Suitable for Liquids and Gases: The WIKA S-20 accurately measures pressure in liquids, gases, and non-corrosive process media, making it a versatile solution for diverse industrial applications requiring dependable pressure monitoring.
- High Protection Against Harsh Environments: With robust sealing and high ingress protection ratings, the S-20 performs reliably in dusty, humid, and outdoor industrial environments, even under challenging operating conditions.
- Easy Installation and System Integration: Available with multiple process connections and electrical connector options, the S-20 simplifies installation while ensuring compatibility with a wide range of industrial equipment and process systems.
- Ideal Industrial Applications: The WIKA S-20 pressure transmitter is commonly used in hydraulic systems, compressors, pumps, boilers, process plants, water treatment facilities, chemical industries, OEM machinery, and power generation, where accurate and reliable pressure measurement is essential.
- Purpose-built for handling viscous, paste-like, crystallizing, or contaminated fluids that would easily clog standard NPT pressure ports.
- Employs a dead-space-free, fully-welded flush diaphragm that enables thorough cleanability (Clean-in-Place / CIP cycles), making it excellent for Food, Beverage, and Pharmaceutical setups.
- Features optional high-temperature configurations equipped with an integrated cooling element to safely manage extreme process media up to +150 °C.

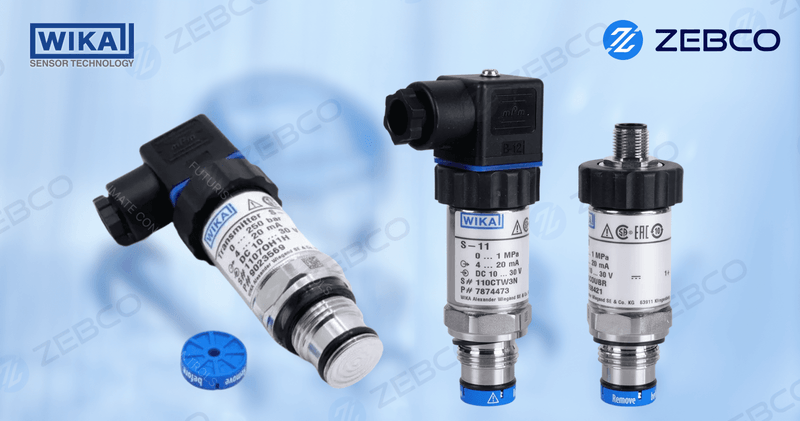

- Designed for Viscous and Contaminated Media: The WIKA S-11 pressure transmitter is specifically engineered for applications involving highly viscous, crystallizing, adhesive, or contaminated process media. Its flush diaphragm design prevents material buildup, ensuring accurate pressure measurement and reliable long-term operation in challenging industrial environments.
- Flush Diaphragm Technology: One of the standout features of the S-11 is its flush-mounted diaphragm, which eliminates dead spaces where process media can accumulate. This design improves hygiene, simplifies cleaning, and enhances measurement accuracy, making it ideal for sanitary and demanding process applications.
- High Measurement Accuracy: The WIKA S-11 delivers precise and stable pressure measurements even under difficult operating conditions. Its advanced sensing technology ensures excellent repeatability and dependable performance, helping maintain process consistency and improve overall system efficiency.
- Corrosion-Resistant Stainless Steel Construction: Built with high-quality stainless steel housing and wetted parts, the S-11 offers exceptional resistance to corrosion, aggressive cleaning agents, and harsh industrial environments. This robust construction ensures durability and a long operational lifespan.
- Wide Pressure Measurement Range: The S-11 is available in various pressure ranges to accommodate low, medium, and high-pressure applications. Its flexibility allows users to select the most appropriate model for specific industrial process requirements.
- Multiple Electrical Output Options: The transmitter supports commonly used industrial output signals such as 4–20 mA, 0–10 V, and other standard electrical outputs. This enables seamless integration with PLCs, DCS, SCADA systems, and other industrial automation platforms.
- Suitable for Hygienic Applications: Thanks to its smooth flush diaphragm and easy-to-clean design, the WIKA S-11 is well suited for hygienic processes where cleanliness and contamination prevention are critical, including food, beverage, pharmaceutical, and biotechnology industries.
- Reliable Performance in Harsh Conditions: The S-11 is designed to withstand vibration, temperature fluctuations, and demanding operating environments. Its rugged construction ensures continuous and dependable pressure monitoring, even in challenging industrial applications.
- Easy Installation and Low Maintenance: Standard process connections and compact dimensions make installation straightforward. The flush diaphragm minimizes maintenance requirements by reducing media buildup, helping lower downtime and operational costs.
- Ideal Industrial Applications: The WIKA S-11 pressure transmitter is widely used in food and beverage processing, pharmaceutical manufacturing, chemical plants, wastewater treatment, cosmetic production, and other industries handling viscous or contaminated media, where accurate and hygienic pressure measurement is essential.
- Purpose-built for original equipment manufacturers (OEMs) seeking uniform consistency across high-volume production.
- Compact configuration allows installation inside tightly integrated internal machine spaces.
- Highly cost-effective for large system rollouts and basic automation assemblies.

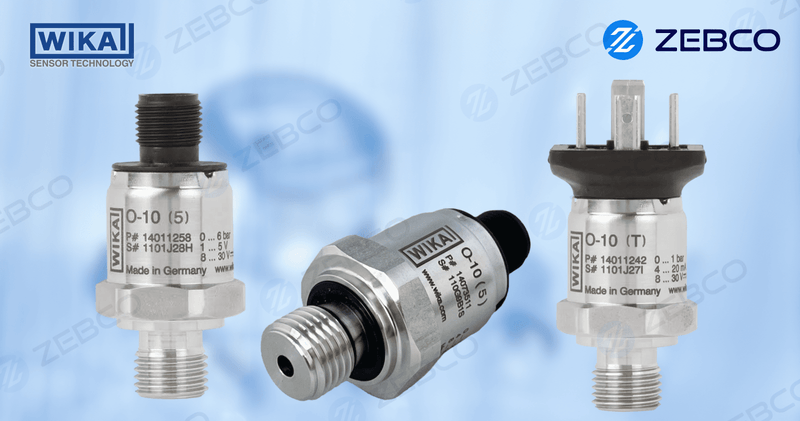

- Optimized for OEM Applications: The WIKA O-10 pressure transmitter is specifically designed for Original Equipment Manufacturer (OEM) machinery and industrial equipment. Its compact design, reliable performance, and cost-effective construction make it an ideal choice for machine builders and system integrators seeking dependable pressure measurement solutions.
- Compact and Lightweight Design: The O-10 features a space-saving design that allows easy installation in compact machines and control panels. Its lightweight construction simplifies integration into OEM systems without compromising durability or measurement performance.
- Reliable Pressure Measurement: Built with advanced sensing technology, the WIKA O-10 provides stable and accurate pressure measurements for liquids, gases, and non-aggressive media. It helps improve machine efficiency by delivering consistent process data for monitoring and control applications.
- Robust Stainless Steel Wetted Parts: The pressure transmitter incorporates stainless steel wetted components that offer excellent resistance to corrosion and mechanical wear. This durable construction ensures reliable operation in demanding industrial environments while extending the service life of the instrument.
- Multiple Pressure Range Options: The WIKA O-10 is available in various pressure ranges to suit diverse industrial requirements. Whether measuring low-pressure hydraulic systems or higher-pressure machinery, users can select a model that matches their application needs.
- Flexible Electrical Output Signals: The transmitter supports standard industrial output options such as 4–20 mA, 0–10 V, and other common electrical signals. These outputs allow easy integration with PLCs, controllers, monitoring devices, and automation systems.
- High Resistance to Industrial Conditions: Designed for continuous industrial operation, the O-10 performs reliably under vibration, temperature fluctuations, and routine mechanical stress. Its rugged construction ensures dependable pressure monitoring even in demanding machine environments.
- Easy Installation and Low Maintenance: Standard process connections and electrical connectors make installation quick and straightforward. The transmitter requires minimal maintenance, helping reduce equipment downtime and lowering the total cost of ownership.
- Cost-Effective Solution for Machine Builders: The WIKA O-10 combines reliable performance, compact dimensions, and competitive pricing, making it an excellent choice for OEM manufacturers seeking a balance between quality, functionality, and cost efficiency.
- Ideal Industrial Applications: The WIKA O-10 pressure transmitter is widely used in OEM machinery, hydraulic power units, air compressors, pumps, packaging machines, industrial automation systems, HVAC equipment, and general-purpose industrial applications, where dependable pressure measurement is essential.
Understanding WIKA Transmitter Pricing in India
The procurement price of WIKA pressure transmitters across the Indian industrial sector is dynamic and fluctuates based on several core technical and logistical parameters:
- Model Selection: General-purpose models like the WIKA A-10 or O-10 are highly economical, whereas critical process models like the S-20 or flush-diaphragm variants like the WIKA S-11 command a premium.
- Accuracy Configuration: Higher calibration accuracy requirements (e.g., ±0.25% vs. ±1.0%) necessitate specialized testing and tuning, which influences final pricing.
- Custom Wetted Parts: Standard stainless steel variants represent the baseline price, while specialized exotic materials like Hastelloy or flush-diaphragm connections add to materials costs.
- Certifications: Optional add-ons such as localized ATEX explosion-proof certification, SIL safety ratings, or formal materials traceability testing reports will impact the aggregate investment cost.
To optimize your project budget, it is highly recommended to collaborate with an authorized distributor who can guide you to select the exact feature set required for your system without over-specifying.
Why Zebco Engineering LLP is the Right Partner
Procuring the ideal pressure sensor is only half the battle. Securing an authentic product backed by full technical engineering support completes your process assurance equation.
What We Offer:
- Fully authorized procurement pipelines for genuine WIKA instruments.
- Expansive local inventory to drastically compress your delivery lead times.
- Expert, application-based model and range matching.
- Comprehensive technical documentation, material test records, and validation assistance.
- Scalable commercial structures optimized for volume plant retrofits and complex project requirements.
- Reliable, post-installation engineering support and consulting.
With Zebco, you don't merely purchase a transmitter; you secure a dedicated, long-term technical instrumentation partner.
Final Thoughts
The WIKA Pressure Transmitter Portfolio represents far more than standalone measurement instruments-they are essential cornerstones of modern industrial safety and data automation. With an unyielding physical construction, reliable operational principles, and strict adherence to international safety parameters, they supply the exact precision required by high-output industrial operations. Supported comprehensively by Zebco Engineering LLP, your facility receives a turnkey, reliable, and completely future-proof process telemetry solution.
FAQs – Frequently Asked Questions
A pressure gauge provides a purely local visual dial indication of the pressure using mechanical components. A pressure transmitter electronically translates mechanical pressure forces into a continuous electrical analog or digital output signal (like 4-20 mA) to transmit data over long distances directly to control systems like a PLC.
The standard WIKA A-10 features internal channels which may clog if exposed to highly viscous, crystallizing, or abrasive fluids. For those aggressive applications, a transmitter configured with a flush diaphragm connection (such as the WIKA S-11) is explicitly designed to prevent clogging and allow easy cleanability.
The global industry standard and most widely requested configuration is a 2-wire 4-20 mA loop current signal. However, depending on your system, alternative outputs like DC 0-10 V, DC 1-5 V, or digital protocols can be explicitly specified during ordering.
Yes, WIKA offers specifically designed and certified models (such as IS-3 or specialized intrinsically safe S-20 variants) that comply with global ATEX and IECEx standards for deployment within hazardous, explosive gas, or dust environments.
Current loop signals (4-20 mA) are inherently immune to electrical noise, signal attenuation, and voltage drops over long cabling lines. Furthermore, the 4 mA baseline allows the system to instantly recognize a broken cable fault if the loop current drops to absolute zero.
For general everyday machinery, standard hydraulics, and typical plant utility monitoring with stable temperatures, select the A-10. For critical high-pressure processing, heavy dynamic shock, severe pressure spikes, or elevated temperature zones, choose the ruggedized S-20.
Standard models offer IP65 protection via standard angular DIN connectors. Depending on the electrical plug style and cable glands selected, protection levels can be escalated up to IP67 or fully submersible IP68 ratings.
Absolutely. Upon prior request during the procurement phase, EN 10204 3.1 material certificates and calibration logs traceable to national or international standard laboratories can be fully provided.
No. Due to their solid-state electronic nature and zero-friction mechanical parts, WIKA sensors exhibit extremely low long-term calibration drift, meaning they can function reliably for years under normal operating conditions before needing routine checks.
Yes, WIKA manufactures specialized vacuum transmitters as well as compound range sensors designed to track variations extending smoothly across both negative and positive pressure scales (-1 bar up to positive ranges).
Pricing is governed by the specific model class, custom accuracy needs, unique wetted thread styles, the incorporation of specialized hazardous area certifications (like ATEX), and the overall order volume required for the installation.
The instrumentation engineering team at Zebco closely reviews your specific chemical media, working pressures, potential spike thresholds, environmental temperatures, and control room electrical requirements to specify the exact, most cost-effective WIKA model variant for your facility.
